料號 0674 2160 |
Part No. 0674 2160 |
|||
? |
? |
|||
應用 |
鉆, 銑, 磨, 雕刻機床 |
Applications |
Drilling, Milling, Grinding, Engraving |
|

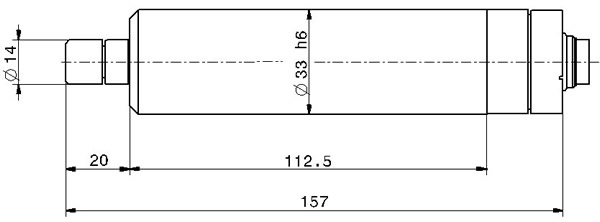

外殼夾裝尺寸 |
33 mm |
Clamping diameter |
33 mm |
|
馬達類型+ ? |
3相異步高速電機 |
Motor system |
3 Phase asynchronous motor |
|
轉速范圍 |
5,000 - 60,000 min-1 |
Speed range |
5,000 - 60,000 rpm |
|
額定電壓 |
30 V |
Voltage |
30 V |
|
電流 |
最大 8 A |
Current |
max. 8 A |
|
扭矩 |
最大 4.5 Ncm |
Torque |
max. 4.5 Ncm |
|
頻率 |
83 – 1,000 Hz |
Frequency |
83 - 1,000 Hz |
|

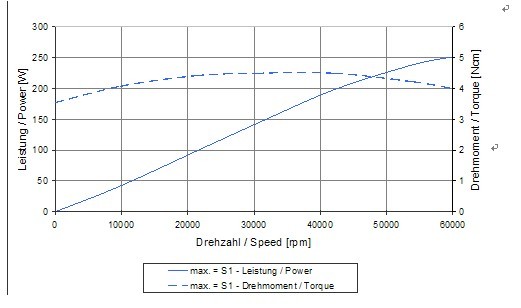

功率 |
最大. 250 W |
Output power |
max. 250 W |
|
重量 |
0.7 kg |
Weight |
0.7 kg |
|
軸承 |
2x 陶瓷軸承, 1x鋼球軸承, 油脂潤滑 |
Bearing system |
2x Hybrid, 1x Steel, lifetime lubricat. |
|
防護等級 |
IP 20 |
Protection category |
IP 20 |
|
電機保護 |
- |
Motor protection |
- |
|
安裝位置 |
|
Working position |
|
|
負載方向 |
軸向 + 徑向 |
Load direction |
axial + radial |
|
錐面跳動 |
一般情況 1 μm |
Run-out (taper) |
typ. 1 μm |
|
刀具夾持范圍 |
? 0.5 – 4.0 mm (包括 1/8") |
Chuck clamping range |
? 0.5 - 4.0 mm (incl. 1/8") |
|
換刀方式 |
2扳手 (SW 12) |
Tool change |
2 open-end wrenches (12 mm) |
|
冷卻系統 |
內置風扇*及外夾具冷卻 |
Cooling system |
Self-ventilation fan* Cooling via clamping bracket |
|
防水防塵措施 |
無 |
Protected against dirt |
No |
|
外殼材料 |
不銹鋼 |
Housing material |
Stainless steel |
|
推薦變頻器 |
e@syDrive? 4424*, 4425 |
Inverter recommendation |
e@syDrive? 4424*, 4425 |
|
*輸出功率有所降低 |
保留修改權 |
*reduced output power |
Subject to change without notice |
|
