料號 0675 0530 - Type 4041 |
Part No. 0675 0530 - Type 4041 |
||
? |
? |
||
料號 2001 2520 - Type 4041 "HY-ESD" |
Part No. 2001 2520 - Type 4041 "HY-ESD" |
||
? |
? |
||
應用 |
鉆, 銑, 磨,雕刻,電路板切割（自動換刀） |
Applications - Type 4041 Type 4041 "HY-ESD" |
Drilling, Milling, Grinding, Engraving PCB routing |

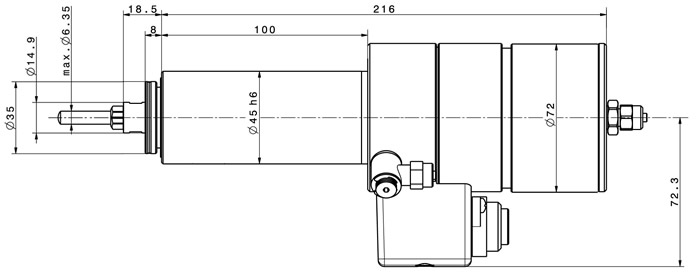

外殼夾裝尺寸 |
45 mm |
Clamping diameter |
45 mm |
馬達類型 |
3相異步高速電機 |
Motor system |
3 Phase asynchronous motor |
轉速范圍 |
5,000 – 50,000 min-1 |
Speed range |
5,000 - 50,000 rpm |
額定電壓 |
48 V |
Voltage |
48 V |
電流 |
最大13 A |
Current |
max. 13 A |
扭矩 |
最大27 Ncm |
Torque |
max. 27 Ncm |
頻率 |
83 - 833 Hz |
Frequency |
83 - 833 Hz |

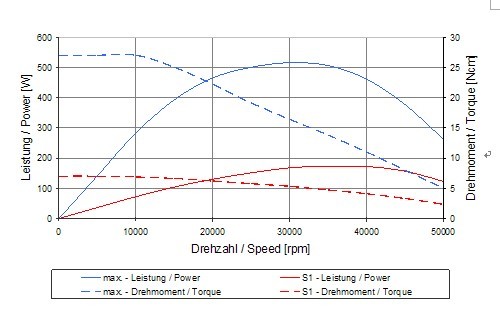

功率 |
最大 500 W |
Output power |
max. 500 W |
重量 |
3.5 kg |
Weight |
3.5 kg |
軸承 |
3 x陶瓷軸承, 油脂潤滑 |
Bearing system |
3 x Hybrid, lifetime lubrication |
防護等級 |
IP 54 |
Protection category |
IP 54 |
電機保護 |
PTC - 100 °C |
Motor protection |
PTC - 100°C |
安裝位置 |
|
Working position |
|
負載方向 |
徑向 + 軸向 |
Load direction |
axial + radial |
錐面跳動 |
通常1 μm |
Run-out (taper) |
typ. 1 μm |
刀具夾持范圍 |
? 1.0 – 6.35 mm (包括 1/8 + 1/4") |
Chuck clamping range |
? 1.0 - 6.35 mm (incl. 1/8 + 1/4") |
換刀方式 |
氣動 7 - 8 bar 和氣動5- 6 bar |
Tool change - Type 4041 Type 4041 "HY-ESD" |
pneumatical 7 - 8 bar |
冷卻系統 |
外夾具冷卻 |
Cooling system |
Cooling via clamping bracket |
防水防塵措施 |
密封氣0.5–0.8 bar(管徑? 內/外 4/6 mm) |
Protected against dirt |
Sealing air 0.5 - 0.8 bar |
外殼材料 |
不銹鋼 |
Housing material |
Stainless steel |
推薦變頻器 |
e@syDrive? 4426, TV 4506 |
Inverter recommendation |
e@syDrive? 4426, TV 4506 |
特性. 4041 "HY-ESD" |
導靜電 |
Highlights 4041 "HY-ESD" |
Leakage of electrostatic charge |
? |
保留修改權 |
? |
Subject to change without notice |
